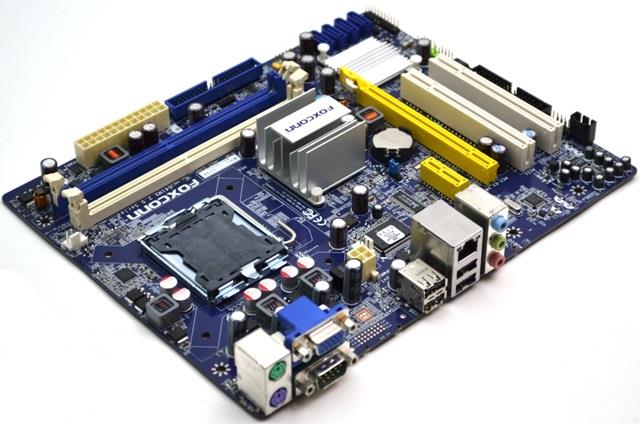

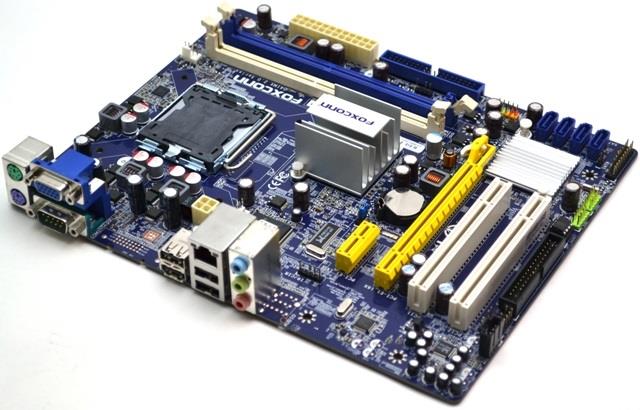

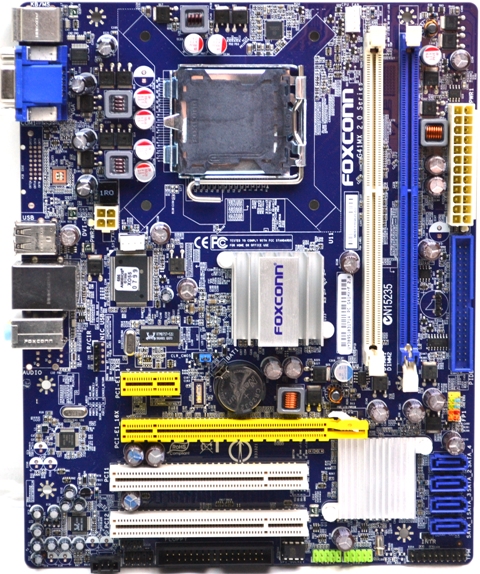

Foxconn G41MX-F LGA775 DDR2 G41 1333FSB
Enlarge
Price:
$34.95
Qty:
Item Code:
MB4FOXG41MXF775
Manufacturer:
Model:
G41MX-F
Add-ons / Accessories
If you wish to order addon / accessories please checkoff the box next to the addon items and press the add to cart button.
Item Description
Foxconn G41MX-F Intel Socket LGA 775 Motherboard. Get excellent power of performance with Foxconn's G41MX-F Motherboard. This micro-ATX motherboard is based around Intel's Intel G41 + ICH7 chipsets, it supports Intel LGA 775 socket Intel® 45nm Multi-Core processors with a front side bus of 800 Mhz to 1333 Mhz speeds. A pair of 240-pin sockets allows you to install up to 8GB of DDR2 memory with dual channel support.





Features:

Intel® Core™2 Quad, Core™2 Duo, Pentium® Dual-Core processors, Socket T (LGA775)
Supports Intel® 45nm Multi-Core processors
1333/1066/800 MHz (FSB)
Dual channel DDR2 800/667x 2 DIMMs, Max 8GB
1* PCIe x16, 1* PCIe x1, 2* PCI
4*SATAII ,1*ATA100
5.1 channel by Realtek® ALC662
Gigabit LAN by Realtek
8 USB 2.0 ports







Specifications:

Click here for Foxconn G41MX-F Latest Available Drivers

Processor:
Intel® Core™2 Quad, Core™2 Duo, Pentium® Dual-Core processors, Socket T (LGA775)
Supports Intel® 45nm Multi-Core processors
Chipset: Intel® G41 + ICH7
Front Side Bus: 1333/1066/800 MHz (FSB)
Memory: Dual channel DDR2 800/667 x 2 DIMMs, Max 8GB
VGA on Die: Integrated
Expansion Slots: 1* PCIe x16, 1* PCIe x1, 2* PCI
IDE: 1*ATA100
Serial ATA(SATA)/RAID: 4* SATAII
Audio: 5.1 channel by Realtek® ALC662
LAN: Gigabit LAN by Realtek® 8111DL
Back Panel I/O Ports: 1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x VGA port
1 x Serial port
1 x Audio jack supports 6 jacks
4 x USB 2.0 ports
1 x RJ45 LAN port
Internal I/O Connectors: 1 x ATX 24-Pin power connector
1 x 4-pin ATX 12V power connector
2 x 4-pin CPU / System FAN connectors
1 x CD-in connector
1 x IDE connector
1 x Floppy connector
1 x Front Panel connector
2 x USB 2.0 connectors support additional 4 ports
4 x Serial ATAII connectors
1 x S/PDIF Out header
1 x Speaker header
1 x Front Audio header
1 x IrDA header
1 x TPM header
BIOS Features: 8Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI
Standards/Manageability: PCI 2.3, USB2.0, DMI 2.5
Form Factor: Micro ATX (9.6"x7.7")












CPU Compatibility for G41MX-F:

CPU NameCoreCpu No.FSB (Mhz)L2 CacheWattage
Intel  Celeron  1.60GHzConroe-L420800512KB35W
Intel  Celeron  1.80GHzConroe-L430800512KB35W
Intel  Celeron  2.00GHzConroe-L440800512KB35W
Intel  Celeron  2.20GHzConroe-L450800512KB35W
Intel  Celeron  2.2GHzConroeE1500800512KB65W
Intel  Celeron  3.4GHzDual CoreE32008001MB65W
Intel  Celeron  2.5GHzDual CoreE33008001MB65W
Intel  Celeron  3.4GHzTBDE39008001MB65W
Intel  Celeron® Dual-core  1.60GHzConroeE1200800512KB65W
Intel  Celeron® Dual-core  2.0GHzConroeE1400800512KB65W
Intel  Celeron® Dual-core  2.40GHzConroeE1600800512KB65W
Intel  Core™2 Duo  1.80GHzConroeE43008002MB65W
Intel  Core™2 Duo  2.00GHzConroeE44008002MB65W
Intel  Core™2 Duo  2.20GHzConroeE45008002MB65W
Intel  Core™2 Duo  2.40GHzConroeE46008002MB65W
Intel  Core™2 Duo  2.60GHzConroeE47008002MB65W
Intel  Core™2 Duo  1.86GHzConroeE630010662MB65W
Intel  Core™2 Duo  1.86GHzConroeE632010664MB65W
Intel  Core™2 Duo  2.13GHzConroeE640010662MB65W
Intel  Core™2 Duo  2.13GHzConroeE642010664MB65W
Intel  Core™2 Duo  2.33GHzConroeE654013334MB65W
Intel  Core™2 Duo  2.33GHzConroeE655013334MB65W
Intel  Core™2 Duo  2.40GHzConroeE660010664MB65W
Intel  Core™2 Duo  2.66GHzConroeE670010664MB65W
Intel  Core™2 Duo  2.66GHzConroeE675013334MB65W
Intel  Core™2 Duo  3.00GHzConroeE685013334MB65W
Intel  Core™2 Duo  2.53GHzwolfdaleE720010663MB65W
Intel  Core™2 Duo  2.66GHzwolfdaleE730010663MB65W
Intel  Core™2 Duo  2.8GHzwolfdaleE740010663MB65W
Intel  Core™2 Duo  2.93GHzwolfdaleE750010663MB65W
Intel  Core™2 Duo  3.06GHzwolfdaleE760010663MB65W
Intel  Core™2 Duo  2.66GHzwolfdaleE819013333MB*265W
Intel  Core™2 Duo  2.66GHzwolfdaleE820013333MB*265W
Intel  Core™2 Duo  2.83GHzwolfdaleE830013333MB*265W
Intel  Core™2 Duo  3.0GHzwolfdaleE840013333MB*265W
Intel  Core™2 Duo  3.16GHzwolfdaleE850013333MB*265W
Intel  Core™2 Duo  3.33GHzwolfdaleE860013333MB*265W
Intel  Core™2 QUAD  2.40GHzKentsfieldQ660010664MB*295W
Intel  Core™2 QUAD  2.66GHzKentsfieldQ670010664MB*295W
Intel  Core™2 QUAD  2.33GHzYorkfieldQ820013334MB95W
Intel  Core™2 QUAD  2.33GHzYorkfieldQ8200S13334MB65W
Intel  Core™2 QUAD  2.50GHzYorkfieldQ830013334MB95W
Intel  Core™2 QUAD  2.66GHzYorkfieldQ840013334MB95W
Intel  Core™2 QUAD  2.50GHzYorkfieldQ930013336MB95W
Intel  Core™2 QUAD  2.66GHzYorkfieldQ940013336MB95W
Intel  Core™2 QUAD  2.66GHzYorkfieldQ9400S13336MB65W
Intel  Core™2 QUAD  2.66GHzYorkfieldQ9450133312MB95W
Intel  Core™2 QUAD  2.83GHzYorkfieldQ950013336MB95W
Intel  Core™2 QUAD  2.83GHzYorkfieldQ9550133312MB95W
Intel  Core™2 QUAD  2.83GHzYorkfieldQ9550S133312MB65W
Intel  Core™2 QUAD  3.0GHzYorkfieldQ9650133312MB95W
Intel  Pentium Dual-core  1.60GHzConroeE21408001MB65W
Intel  Pentium Dual-core  1.80GHzConroeE21608001MB65W
Intel  Pentium Dual-core  2.00GHzConroeE21808001MB65W
Intel  Pentium Dual-core  2.20GHzConroeE22008001MB65W
Intel  Pentium Dual-core  2.40GHzConroeE22208001MB65W
Intel  Pentium Dual-core  2.50GHzwolfdaleE52008002MB65W
Intel  Pentium Dual-core  2.60GHzwolfdaleE53008002MB65W
Intel  Pentium Dual-core  2.70GHzwolfdaleE54008002MB65W
Intel  Pentium Dual-core  2.8GHzwolfdaleE630010662MB65W
