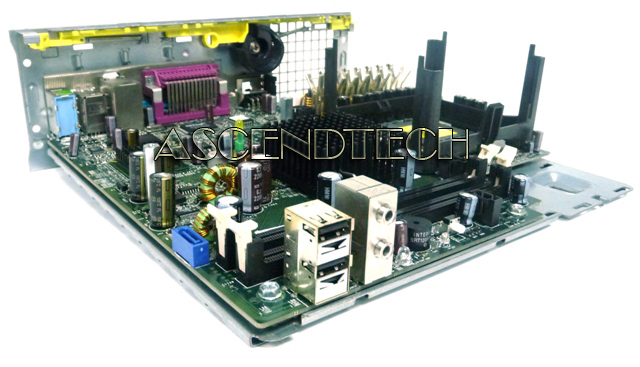

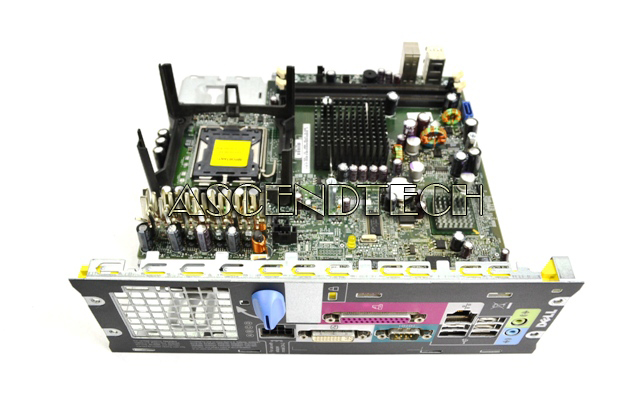

Dell Optiplex SX280 Motherboard. Dell Compatible Part#'s: U2313 0U2313 D8695 0D8695 UD789 0UD789 HM775 0HM775 DU683 0DU683 WH415 0WH415 JT105 0JT105.
| Dimensions | 8.9 cm (3.5 inches), 25.3 cm (9.95 inches), 26.4 cm (10.375 inches) |
| Processor | - Support for an Intel® Pentium® 4 processor in a LGA775 socket with a 400 / 533 / 800 MHz system bus
- Support for an Intel® Celeron® D processor in a LGA775 socket with a 400 / 533 MHz system bus
|
| Memory | - Two DDR2 240Pin DIMM sockets
- Support for single-sided or double-sided DIMMs (DDR2 533/400/333/266)
- 2GB Maximum Memory Support ( Dual Channel Mode )
- Supports 128MB, 256MB, 512MB or 1GB NON Ecc Memory Sticks
|
| Chipset | Intel® 915G Chipset |
| Sound | On Board Sound Blaster emulation Stereo Sound - Line In, Line Out, Microphone |
| Video | On Board Intel 2D/3D Graphics Accelerator DVI-I Output |
| Peripheral Interfaces | - Five Back-panel USB 2.0 ports and Two Front-panel USB Ports. USB 1.1 Compatible
- One serial port
- One parallel port
- One SATA Port
|
