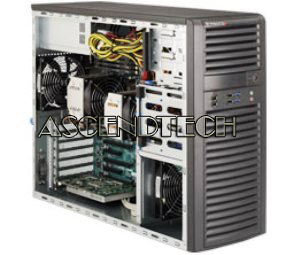

Supermicro SuperServer 7037A-I Dual LGA2011 DDR3 1600/1333/1066/800 Mid-Tower Barebone Server. Designed for optimal performance, the dual-processor SuperWorkstation 7037 series support the QPI (8.0 GT/s) format Xeon® processor E5-2600 series in a high-density Mid-Tower form-factor. The 7037 SuperWorkstations are ideal for graphics-intensive applications, extreme gaming, or video rendering.
Key Features:- Intel® Xeon® processor E5-2600 family; QPI up to 8GT/s
- Up to 512GB DDR3 1600MHz ECC Registered DIMM; 16x DIMM sockets
- Expansion slots: 3 (x16) PCI-E 3.0, 2 (x8) PCI-E 3.0 & 1 (x4) PCI-E 3.0
- Intel® i350 Dual port Gigabit Ethernet
- 2x SATA3 and 8x SATA2 ports
- 4x 3.5" SAS/SATA HDD bays,
90° rotating hard drive cage,
4x 2.5" internal HDD/SSD bays (opt.) - 900W High Efficiency Power Supply
Specifications:
| Product | |
| Mid-Tower | |

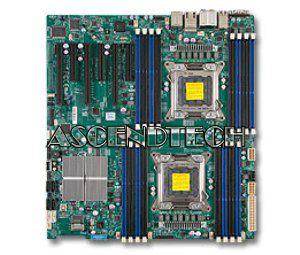

| Motherboard | |
| CPU | - Intel® Xeon® processor E5-2600
- Dual Socket R (LGA 2011)
|
| Cache | |
| System Bus | |
| Memory Capacity | - 16x 240-pin DDR3 DIMM sockets
- Supports up to 512 GB DDR3 ECC Registered memory (RDIMM)
|
| Memory Type | - 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
|
| DIMM Sizes | - 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
|
| Memory Voltage | |
| Error Detection | - Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
| Chipset | |
| SATA | - SATA 2.0 3Gbps with RAID 0, 1, 5, 10
- SATA 3.0 6Gbps with RAID 0, 1
|
| Network Controllers | - Intel® i350 Dual Port Gigabit Ethernet
- Virtual Machine Device Queues reduce I/O overhead
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
|
| Audio | - RealTek ALC889 7.1 High Definition Audio with S/PDIF header
|
| Super I/O | |
| PCI-Express | - 3 (x16) PCI-E 3.0 slots
- 2 (x8) PCI-E 3.0 slots
- 1 (x4) PCI-E 3.0 slot
|
| SATA Ports | - 2x SATA 3.0 ports (6Gbps)
- 8x SATA 2.0 ports (3Gbps)
|
| LAN | - 2x RJ45 Gigabit Ethernet LAN ports
|
| USB | - 4x USB 3.0 ports (2 front + 2 via header)
- 7x USB 2.0 ports (4 rear + 2 via header + 1 Type A)
|
| Audio | - Line-in / Line-out / Microphone Ports
|
| Keyboard / Mouse | - PS/2 keyboard and mouse ports
|
| Serial Port / Header | |
| IEEE 1394a | |
| BIOS Type | - 64Mb SPI Flash EEPROM with AMI BIOS
|
| BIOS Features | - Plug and Play (PnP)
- APM 1.2
- DMI 2.3
- ACPI 1.0 / 2.0
- USB Keyboard support
- SMBIOS 2.3
- UEFI
|
| Internal Drive Bays | - 4x 3.5" SAS/SATA HDD Bays (90° rotatable drive cage)
- Enterprise SATA HDD only recommended
|
| Peripheral Bay | - 2x 5.25" peripheral drive bays
- 1x 3.5" peripheral drive bay
|
| System Cooling Fans | - 1x 12cm (1850rpm) rear exhaust fan
- 1x 12cm (1850rpm) front cooling fan
- Optimized cooling technology for Whisper-Quiet Operation
|
| Power Supply AC Voltage | - 100-240 V, 50-60 Hz, 10-6 Amp
|
| +5V Standby | |
| +12V1 | |
| +12V2 | |
| +12V3 | |
| +12V4 | |
| +5V | |
| +3.3V | |
| -12V | |
| Certification | |
| Height | |
| Width | |
| Depth | |
| Gross Weight | |
