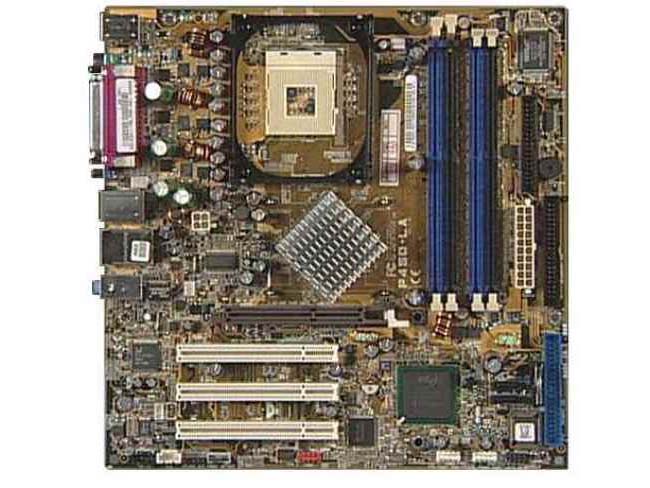

HP / Compaq Stingray GL6E Pentium 4 800FSB mPGA478 DDR Motherboard. HP / Compaq Motherboard Raises The Bar Of PC Industry And Deliver A Full-value, High-performance Solution For Today's Most Demanding Tasks.
Compatible with HP / Compaq Models:
716n DK322AR, 716n DK322A, a250y CTO D7219P/D7219V/D7219W/D7219X, j212cn DK272A, j218cn DK273A, a290n, a265c, a262n, a244w, a375c, a367c, a365c, a362n, a350y CTO (D7222E), 856x DN018AR, 856x DN018A, 876x DN126AR, 876x DN126A, 886c DK386AR, 886c DK386A, 896c DN124AR, 896c DN124A, a244w DM144AR, a244w DM144A, a250n DF253AR, a250n DF253A, a250y CTO (D7219P), a262n DK342AR, a262n DK342A, a265c DF283AR, a265c DF283A, a282n DQ034AR, a282n DQ034A, a290n DM180AR, a290n DM180A, a340n DQ099AR, a340n DQ099A, a350y CTO (D7222E), a365c DN120AR, a365c DN120A, a367c DQ139AR, a367c DQ139A, a434n PC025AR, a434n PC025A, t232k DK237A, t237k DN021A, t240a DK227A, t240a DK227R, t240m DF300A, t250a DK228A, t250a DK228R, t262k DK238A, t267k DN022A, a340n, Presario S4000T CTO P8655S/P8655T/P8655U/P8655V/P8656F/P8656K/P8656Q, Media Center m200y CTO (D7219Q), t238d DN098A, t268d DK309A, t272d DK288A, t278d DK399A, t280d DK260A, Presario S4040SE DF261AR, Presario S4040SE DF261A, Presario S4060AN DK275A, Presario S4060AN DK275R, Presario S4280AP DK298A, Presario S4300NX DF216AR, Presario S4300NX DF216A, Presario S5000T CTO (P8656Q), Presario S5322CC DT147AR, Presario S5322CC DT147A, Presario S5400NX DM175AR, Presario S5400NX DM175A, Presario S5410NX DN146AR, Presario S5410NX DN146A, Media Center m260n DF200AR, Media Center m260n DF200A, Media Center m270n DF201AR, Media Center m270n DF201A, Media Center m270 DM160AR, Media Center m270 DM160A, Media Center m280n DF202AR, Media Center m280n DF202A
Related Part Numbers: 5187-3429 5187-4294 5187-4651
Specifications:
Motherboard Description | Manufacturer's name - ASUS P4SD-LA HP/Compaq name - Stingray-GL6E |
Motherboard Supplier | ASUS |
System BIOS Supplier | ASUS/Award |
Board Form Factor | uATX |
Processor Brand | Intel |
Processor Socket Type | mPGA478 |
Processor Family | Pentium 4HT |
Maximum Processor Core Frequency | Up to 3.2 GHz P4 Northwood |
Processor Front Side Bus | 800/533/400 MHz |
Hyper Threading Support | Yes |
Processor VRM Specification | Northwood FMB2 |
Chipset 'North Bridge' | 865G |
Chipset 'South Bridge' | ICH5 |
Super I/O | SMsC LPC47M192-NC |
Flash BIOS Device Type and Density | FWH 4 Mbit |
Memory Type | DDR SDRAM (Supports dual channel) |
Memory Speed | PC3200 (400 MHz)
PC2700 (333 MHz)
PC2100 (266 MHz) |
Memory Sockets | Four DDR DIMM (184-pin) |
Single or Dual Channel | Dual System Memory |
Maximum Memory Supported | 4GB (4 x 512MB) unbuffered (HP and Compaq recommend 2GB) |
AGP Graphics Support | Yes |
AGP Graphics Maximum Mode | AGP 8x |
Integrated Graphics Supplier | Intel |
Integrated Graphics Shared (UMA) Memory | Up to 64 MB Intel DVMT- dynamic (32 MB if less than 256 MB system memory) |
Graphics Configuration | Integrated on motherboard |
Graphics Connector | AGP 8x (available) |
TV-out Device or Configuration | No |
Integrated Audio Type | AC'97 |
AC'97 Codec Device | Realtek ALC650 |
5.1 (Dolby) Channel Audio Support | Yes, Six speaker mode (requires audio driver and software setting changes) |
Passive Speaker Output (amplifed) | Speaker-out header |
Rear Audio Jacks | Microphone
Line-in
Line-out |
Front Audio Connectors | Headphones
Microphone
Line-in |
Ethernet 10/100 LAN Supplier | PCI Realtek RT8101L |
Ethernet Configuration | Integrated, Down |
IEEE 1394 Support | Configuration: Integrated on motherboard
MAC/PHY Device: TI TSB43AB22
Maximum transfer rate: 400MBps
Ports: Two total (1 front, 1 back) |
IDE/ATAPI UDMA Modes | 2 IDE connectors Supports. 2 IDE devices on each connector. Supports UDMA 100/66/33 - requires an 40 pin/80 conductor cable for UDMA 66 and 100 disk drives
2 SATA connectors Supports. 1 Serial ATA-150 disk drive on each connector |
Expansion Slots | One AGP
Three PCI
One Ultra ATA |
USB Ports | Supports up to 8 USB v2.0 |
USB Front/Rear Options | Up to four front, four rear |
Rear External Ports | One serial
One parallel
One floppy
Two PS/2 (keyboard and mouse)
One IEEE 1394
Four USB
One VGA Monitor |
Front External Ports | Two USB, One IEEE 1394 |
Fan support | Headers for CPU and System
CPU Fan Speed Control for active fansink
System Fan Speed Control |
Available Manufacturer Options | Integrated graphics (G),
Integrated LAN (L),
Six speaker mode, Dolby 5.1 (6)
Integrated 1394 (E) |

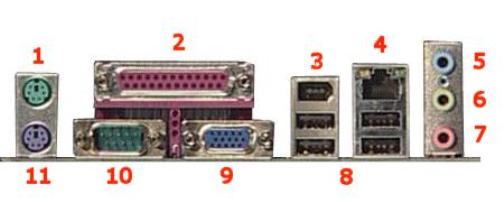

1 - Mouse
2 - Parallel
3 - IEEE 1394 FireWire
4 - LAN
5 - Line-In
6 - Line-Out
7 - Microphone
8 - USB
9 - VGA
10 - Serial
11 - Keyboard
