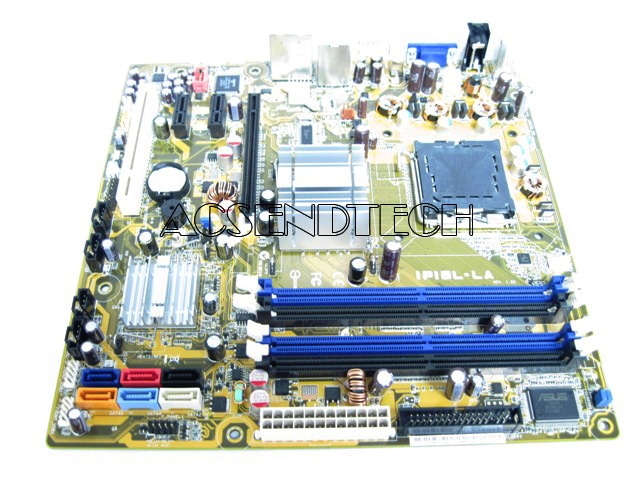

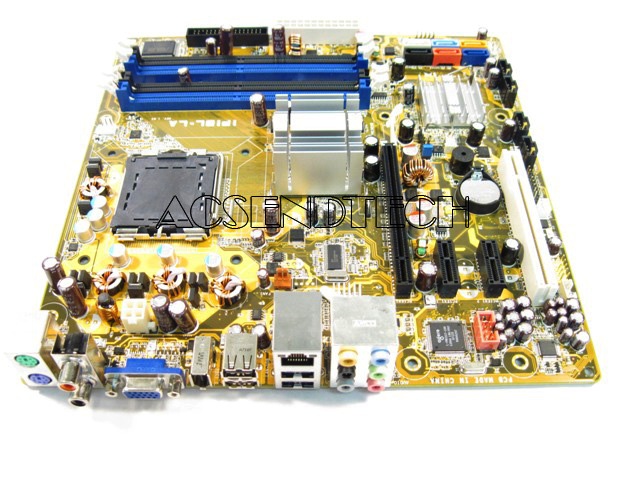

HP Compaq Berkeley-GL8E 5188-7726 IPIBL-LA. HP / Compaq Motherboard Raises The Bar Of PC Industry And Deliver A Full-value, High-performance Solution For Today's Most Demanding Tasks.

Manufacturer's motherboard name: ASUS IPIBL-LA 5188-7726 5189-2129
HP/Compaq name: Berkeley-GL8E

Specifications:

Form Factor:
Micro-ATX: 24.4 cm (9.6 inches) x 24. cm (9.6 inches)
Chipset:
Northbridge: Intel G33
Southbridge: ICH9R
Front-side bus speed:
800 MHz, 1066 MHz, 1333 MHz (processor dependent)
Motherboard supports the following processor upgrades:
Core 2 Duo E6x00 up to E6850 or E6700 (C)
Core 2 Duo E4x00 up to E4400 (C)
Four 240-pin DDR2 DIMM sockets
Supported DIMM types:
DDR2-800
DDR2-667
Supports 2 GB DDR2 DIMMs
Video:
Integrated graphics using Intel GMA 3100
Audio:
Integrated Realtek ALC888S Audio
High Definition 7.1 channel audio
Audio CODEC: Realtek ALC888S
Network:
LAN: 10-Base-T
Interface: Integrated into motherboard
Technology: Intel 825662DC
Data transfer speeds: up to 10/100 Mb/s
Expansion Slots:
One PCI Express x16
Two PCI Express x1
