Gateway Profile 6 Motherboard 4001137R. Gateway motherboard raises the bar of PC industry and deliver a full-value, high-performance solution for today's most demanding tasks.
Please click here to download the latest drivers!
Compatible Part Numbers: 2527923R 2527924R 2527925R 2527926R 2527927R 2527928R 2527929R 2527930R 2527931R 4001137R
Features:
- Supports Intel processors with a 1066, 800, or 533 MHz system bus in an LGA775 socket (115 watt)
- Intel Graphics Media Accelerator 950
- Accepts DDR2 667/533 MHz memory
Specifications:
| Form Factor | Customized BTX 4-layer; 9.25 × 11.18 inches (235 × 284 millimeters) |
| Chipset | Intel 945G chipset, consisting of: - MCH (northbridge): 945G
- ICH (southbridge): ICH7
|
| Processor Support | Intel processors with a 1066, 800, or 533 MHz system bus in an LGA775 socket (115 watt): - Celeron® D 3x1
- Pentium® 4 6xx
- Pentium D 8xx, 9xx (dual core)
|
| Memory | Two DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets DDR2 667 or DDR2 533 MHz DIMMs Expandable up to 2 GB total memory |
| Video | Integrated Intel Graphics Media Accelerator (GMA) 950 graphics subsystem with up to 224 MB shared video RAM Optional NVIDIA PCI Express ×16 add-in card |
| Audio | Integrated Azalia audio interface using the Realtec/ALC883 codec Audio amplifier: APA2068, 2 W + APA3010 (subwoofer), 3 W |
| IEEE 1394a Controller | TI TSB43AB22A, 2 port |
| LAN Support | Intel 82573E(Giga) |
Intel Active Management
Technology (IAMT) (ASF2.0) | Tekoa 82573E |
| SIO/Management ASIC | SMSC SCH5017 |
| Add-in Card Slots | One half-height PCI slot on motherboard One riser card slot. Riser card options: - One PCI Express ×16 slot + one PCI
- One PCI Express ×16 + one PCI Express×1
- One PCI conventional + one PCI Express×1
|
| Peripheral Interfaces | PS/2 keyboard port PS/2 mouse port Six USB 2.0 ports (four on side panel, two internal) Two SATA connectors Floppy disk connector IDE connector Serial port Parallel port VGA in port S/PDIF audio port Five Analog audio jacks RJ-45 LAN (network) connector Two IEEE 1394 (FireWire) ports (one 4-pin and one 6-pin) Optional DVI connector - only available if add-in video card is installed. |

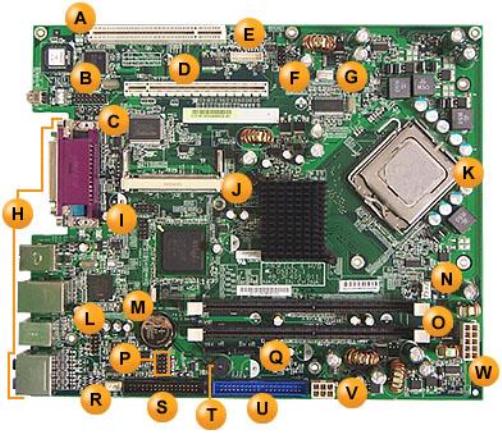

*CPU is not included! Picture is for specification purposes only!
| Item | Description | Item | Description |
| A | Half-height PCI slot | M | Battery |
| B | TPM connector | N | System fan connector |
| C | BIOS configuration jumper | O | Memory slots |
| D | Riser card slot | P | Front panel connector |
| E | Video signal connector | Q | SATA connectors |
| F | LCD power connector | R | Speaker connector |
| G | CPU fan connector | S | Floppy disk drive connector |
| H | I/O ports | T | Speaker |
| I | USB connectors | U | IDE connector |
| J | Mini PCI slot | V | Drives power connector |
| K | CPU socket | W | Main power connector |
| L | Front panel audio connector |
