Gateway 8-in-1 media card reader. This 8-in-1 media card reader has two USB 2.0 ports and slots for Secure Digital (SD), Smart Media, Compact Flash, Memory Stick, Memory Stick PRO, Micro Drive and Multimedia cards. Gateway Part Numbers: 100712, 101313, 104889, 5503313, 5503314, 5503819, WMENMD2002003.
Media cards supported:
- Left slot:
- SecureDigital (SD)
- MultiMedia Card (MMC)
- SmartMedia (SM)
- Memory Stick® (MS)
- Memory Stick Pro® (MS Pro)
- Right slot:
- CompactFlash™ (CF)
- Microdrive
Compatible with: most eMachines and Gateway Models
Silver Faceplate NOT Included.
| 8-in-1 Media Card Reader Specifications |
| General |
| Performance | Maximum read speed: 1.7 MB/sec
Maximum write speed: 1.5 MB/sec |
| Interface | USB 1.1 standard

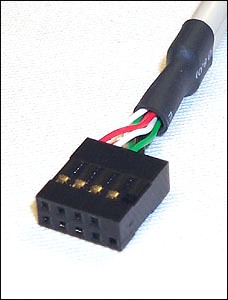

The card reader is powered through the USB connection leading from the motherboard USB connector |
| Media supported | Left slot: - SecureDigital (SD)
- MultiMedia Card (MMC)
- SmartMedia (SM)
- Memory Stick® (MS)
- Memory Stick Pro® (MS Pro)
Right slot: - CompactFlash™ (CF)
- Microdrive
|
| Operating system | Windows XP using native drivers |
| Media connectivity | - Ports operate independently of each other.
- Each port is capable of being accessed simultaneously.
- One LED lights when any supported card is properly installed.
- LED blinks when data is being read or written to the card.
|
| Flash media types supported |
| CompactFlash I and II, Microdrive | - Dimensions (L × W × H): 36.4 × 42.8 × 5.0 mm maximum
- Power: 3.3 V and 5 V devices
- Capacity: Up to 1 GB
|
| Smart Media | - Dimensions (L × W × H): 45 × 37 × .76 mm
- Power: 3.3 V and 5 V devices
- Capacity: Up to 256 MB
|
| MultiMedia, Secure Digital | - Dimensions (L × W × H): 32 × 24 × 1.4 mm
- Power: 3.3 V
- Capacity: Up to 128 MB for MultiMedia. Up to 512 MB for Secure Digital
|
| Memory Stick, Memory Stick PRO | - Dimensions (L × W × H): 50 × 21.5 × 2.8 mm
- Power: 3.3 V
- Capacity: Up to 128 MB for Memory Stick. Up to 1 G for Memory Stick PRO
|
| Physical |
| Dimensions (H × W × D) | 25.21 × 135.50 × 120.62 mm (minimum) |
| Weight | Approximately 0.26 KG |
| Environmental |
| Temperature | Operating: 0° C to 40° C
Storage: -20° C to 45° C |
| Relative humidity (non-condensing) | Operating: 0% and 90%
Storage: 0% to 95% |
